Tube and clamp scaffolding is a versatile system that uses steel tubes joined by mechanical couplers to create custom scaffold structures of virtually any shape, size, or configuration. This adaptability makes it the go-to choice for irregular building facades, circular structures, and complex jobsite geometries where standard frame scaffold systems can’t reach. Our tube and clamp product line includes galvanized tubes, right-angle couplers, swivel couplers, sleeve couplers, base plates, and all supporting hardware.

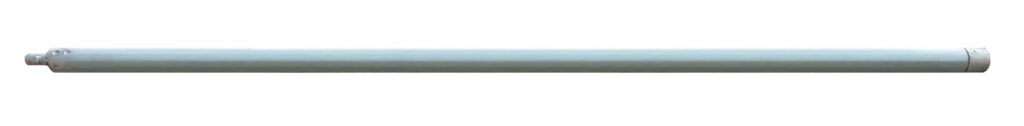

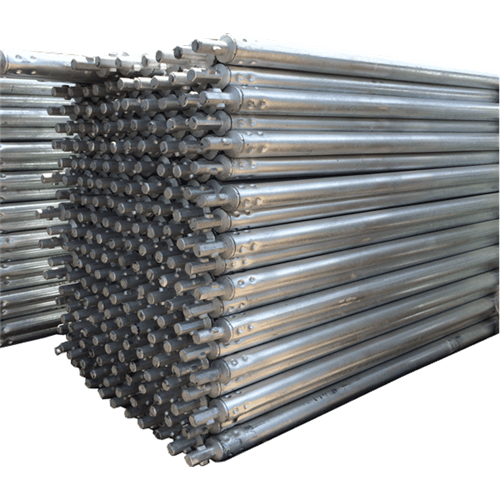

Galvanized scaffold tubes with pressed end fittings, serving as the foundational structural members in tube and clamp scaffold construction. Each tube is hot-dip galvanized for superior corrosion resistance and extended service life across demanding outdoor environments. Pressed steel end fittings allow secure connections with standard scaffold couplers, swivel clamps, and fixed fittings for versatile framework configurations. While primarily used in tube and clamp builds, these tubes are equally compatible with Ring Lock and Cup Lock System scaffold parts, making them a flexible component for contractors working across multiple scaffold platforms. Available in a range of lengths to accommodate varied span, bracing, and railing requirements on both residential and commercial jobsites.
| Product Name | Weight | Part Number |
|---|---|---|
| 2' Tube W/End Fitting | 6.03 LBS | PSV-909G |
| 4' Tube W/End Fitting | 11.80 LBS | PSV-910G |
| 6' Tube W/End Fitting | 16.60 LBS | PSV-911G |
| 8' Tube W/End Fitting | 20.20 LBS | PSV-912G |
| 10' Tube W/End Fitting | 26.20 LBS | PSV-913G |
| 13' Tube W/End Fitting | 48.80 LBS | PSV-914G |
| 16' Tube W/End Fitting | 37.95 LBS | PSV-916G |
| 20' Tube W/End Fitting | 40.00 LBS | PSV-915G |
| 24' Tube W/End Fitting | 48.40 LBS | PSV-938G |

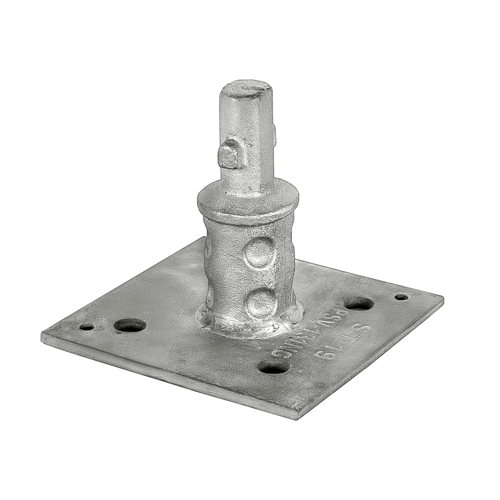

Galvanized base plate with integrated tube lock, designed to anchor tube and clamp scaffold assemblies to the ground. The vertical spigot accepts standard scaffold tubes and features a locking mechanism that holds the tube firmly in place without the need for a separate coupler at the base connection. A flat steel plate distributes the scaffold load evenly across the bearing surface, with pre-drilled holes for optional anchoring to concrete or other fixed substrates. Heavy-duty galvanized finish throughout for lasting corrosion resistance on exposed jobsites.
| Product Name | Weight | Part Number |
|---|---|---|
| Base Plate W/Tube Lock | 3.20 LBS | PSV-131N |
All 2″ Clamps can be ordered with I-Bolt or T-Bolt

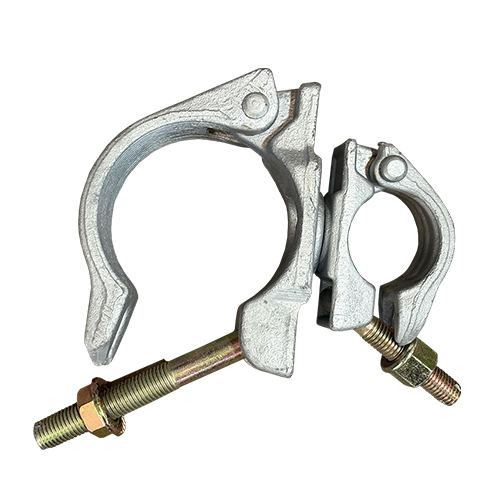

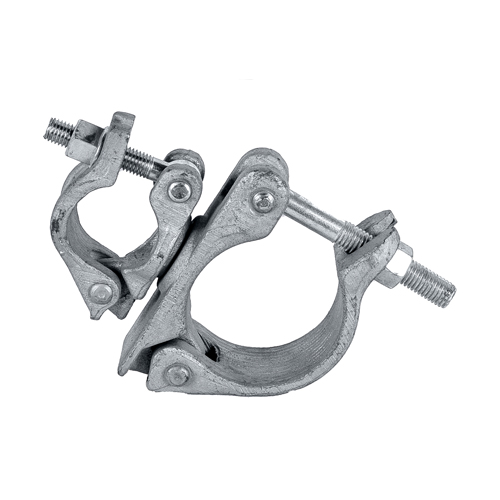

3-1/2″ X 2″ Swivel Clamp
WT. 5.40 LBS
PSV-771

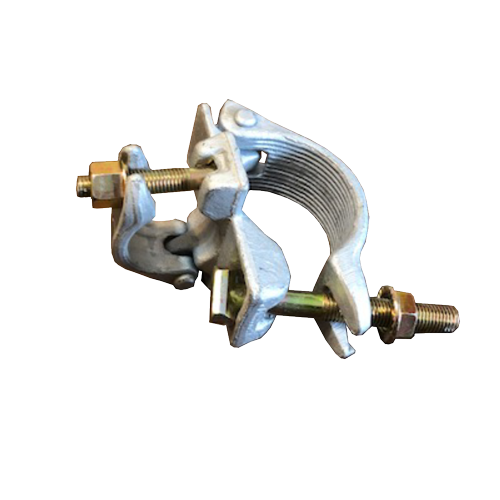

3-1/2″ X 2″ Right Angle Clamp
WT. 5.94 LBS
PSV-772

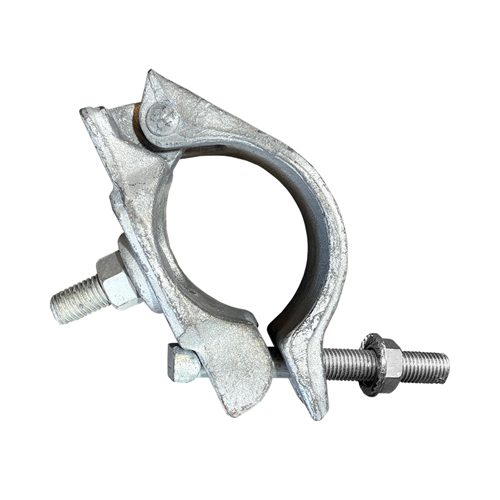

3-1/2″ Stud Clamp
WT. 4.20 LBS
PSV-773

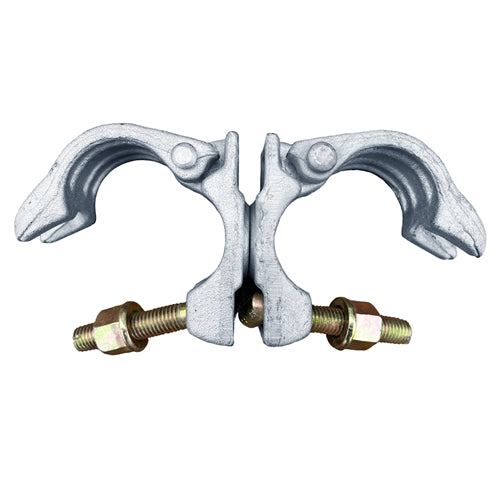

2″ X 2″ Swivel Clamp
WT. 3.86 LBS
PSV-900

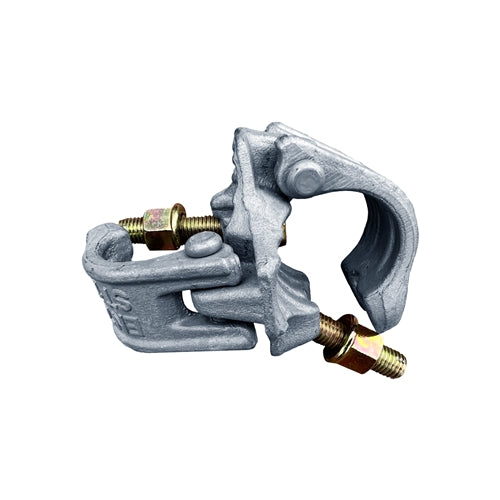

Right Angle Clamp
WT. 3.22 LBS
PSV-901

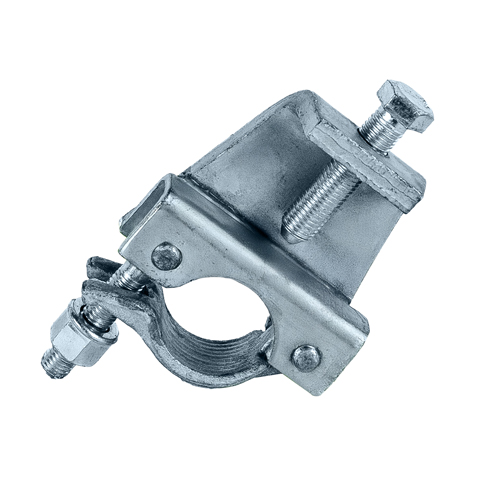

Rigid Beam Clamp
WT. 3.20 LBS
PSV-902

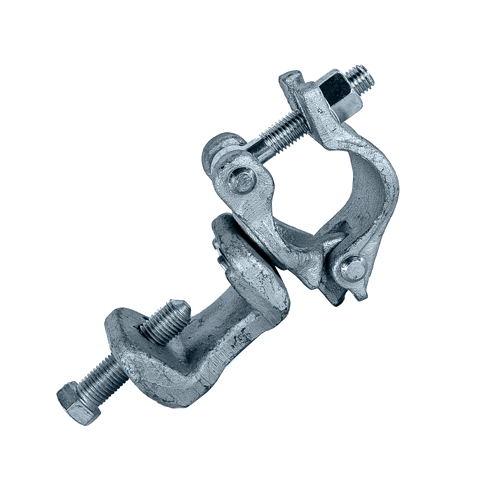

Swivel Beam Clamp
WT. 3.40 LBS
PSV-902S

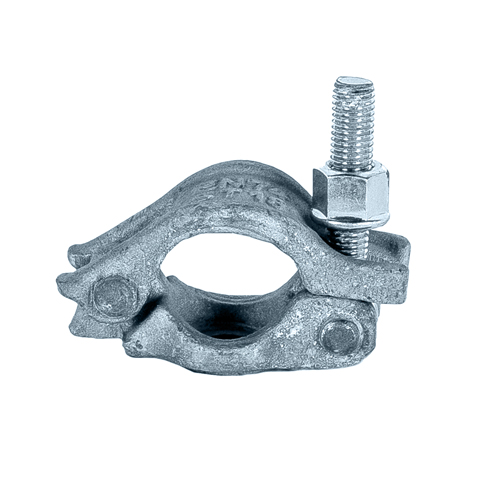

Half Clamp
WT. 1.80 LBS
PSV-904

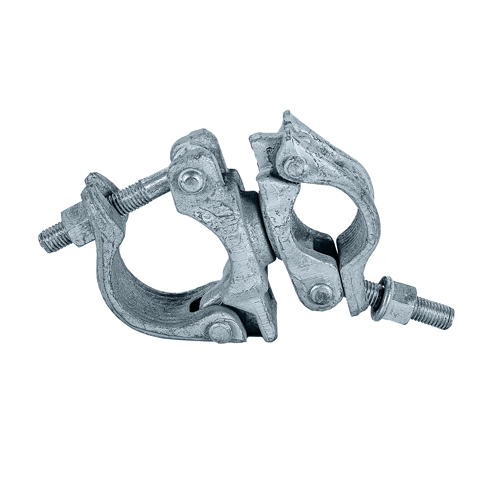

2-1/2″ X 2″ Swivel Clamp
WT. 5.40 LBS
PSV-905

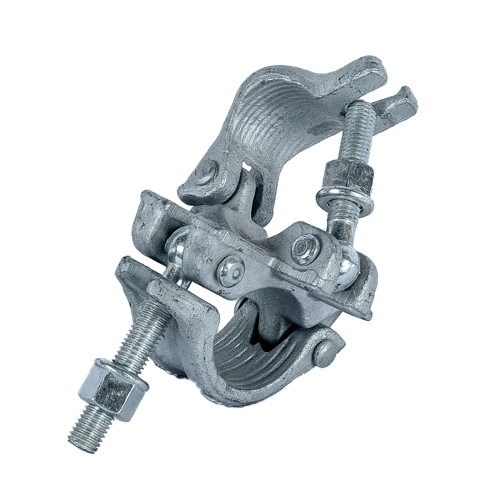

2-1/2″ X 2″ Right Angle Clamp
WT. 5.00 LBS
PSV-906

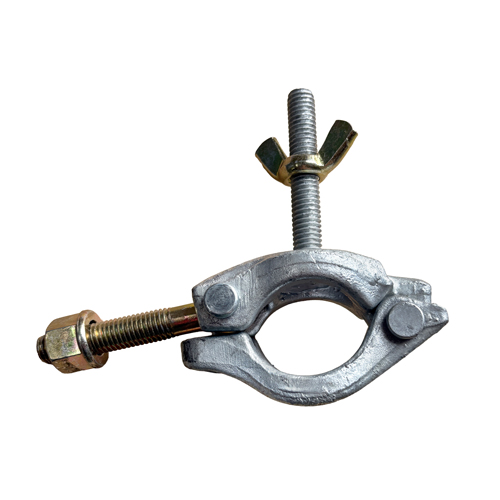

2″ Stud Clamp
WT. 1.67 LBS
PSV-907N
