Shoring systems provide critical temporary vertical support for concrete formwork, structural slabs, and overhead construction during the building process. Our shoring product line includes 10K H.L. shoring frames, post shores, angle iron cross braces, screw jacks, U-heads, base plates, and more to handle load requirements ranging from light residential pours to heavy commercial and industrial applications. All components are engineered to work together for fast assembly of stable, high-capacity shoring towers.
Heavy-duty 10K shoring frames are designed to provide temporary vertical load support for concrete formwork, structural slabs, and overhead construction. Rated for high-capacity applications, the frame’s welded steel tube construction handles substantial compressive loads while maintaining structural rigidity under sustained weight. Horizontal cross members add lateral stability, and drop-lock pins at each connection point allow fast, secure stacking and bracing for multi-tier shoring towers. Finished in a red powder coat for corrosion resistance and easy visual identification on active jobsites. Compatible with standard shoring cross braces, screw jacks, base plates, and U-head adapters to accommodate a wide range of beam and formwork configurations.
Made of High Quality Q345 Steel
First Lock 7″ From Top of Frames Leg (13″ on 6′ Tall Frames)
Lock Type: Candy Cane
Wall Thickness: 2.375″ O.D. Tube Diameter X 0.156″
Finish: Powder Coat Red
| Product Name | Weight | Part Number |
|---|---|---|
| 4' X 4' Shoring Frame | 48.80 LBS | PSV-701AC |
| 2' X 4' Shoring Frame | 38.20 LBS | PSV-702AC |

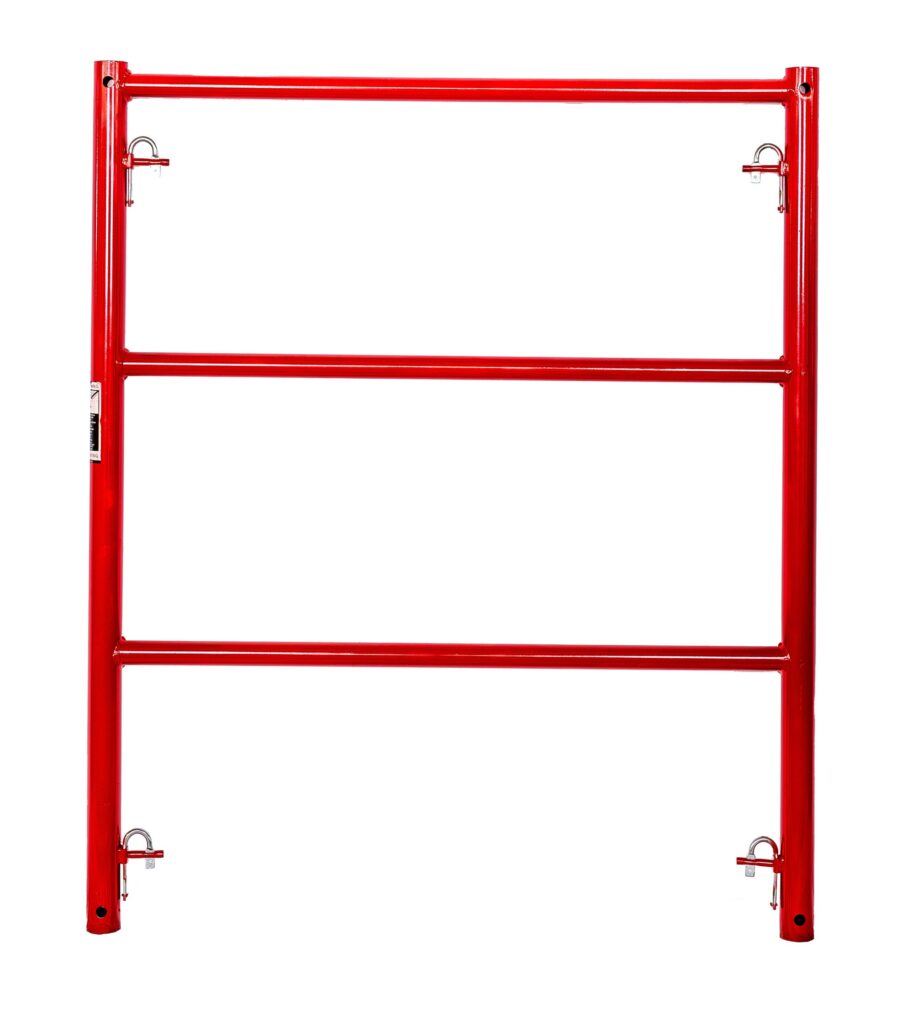

| 4' X 5' Shoring Frame | 52.60 LBS | PSV-703AC |
| 2' X 5' Shoring Frame | 45.40 LBS | PSV-704AC |
| 4' X 6' Shoring Frame | 65.20 LBS | PSV-705AC |
| 2' X 6' Shoring Frame | 53.40 LBS | PSV-706AC |
| 4' X 3' Shoring Frame | 34.80 LBS | PSV-707AC |
| 2' X 3' Shoring Frame | 28.00 LBS | PSV-708AC |
2.375″ O.D. Post Shore, 1.9″ O.D. Staff Post. (Available powder coated black or galvanized)
3’6″ to 6′ Post Shore (#0)
WT. 30.53 LBS
PSV-718
5’9″ to 10’3″ Post Shore (#1)
WT. 39.24 LBS
PSV-719

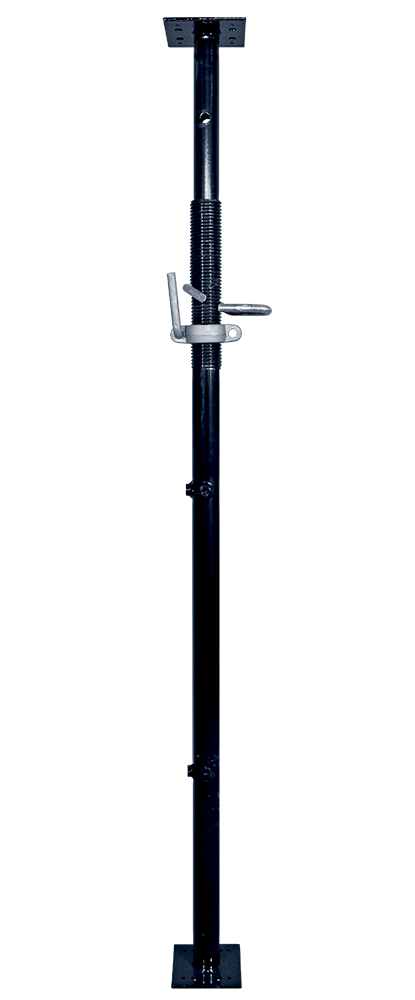

6’6″ to 11′ Post Shore (#2) W/ or W/Out U-Head
WT. 47.72 LBS
PSV-720

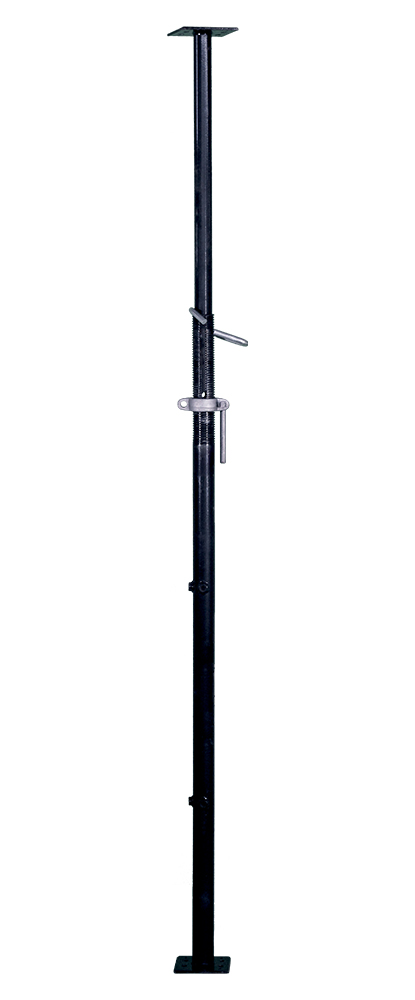

8’6″ to 13′ Post Shore (#3)
WT. 53.45 LBS
PSV-721

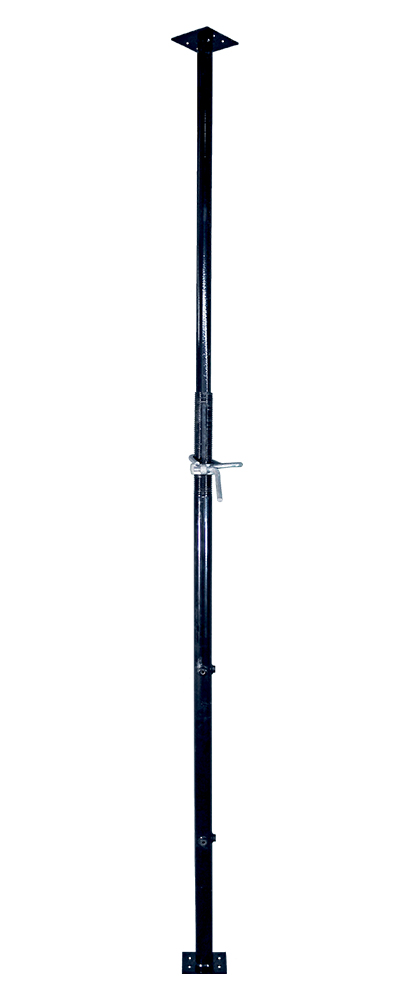

10’6″ to 16′ Post Shore (#4)
WT. 63.16 LBS
PSV-722
3″ O.D. Post Shore, 2.50″ O.D. Staff Post. (Available powder coated black or galvanized)

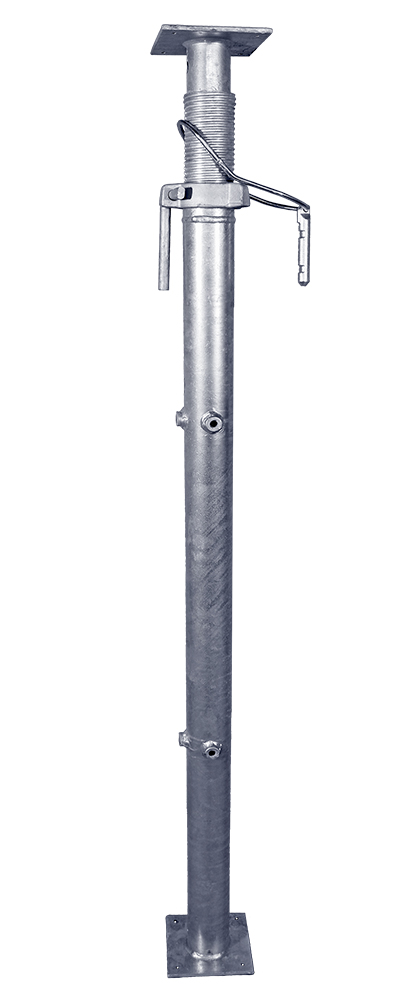

5’7″ to 9’6″ Galvanized 25k Post Shore
WT. 52.72 LBS
PSV-724G

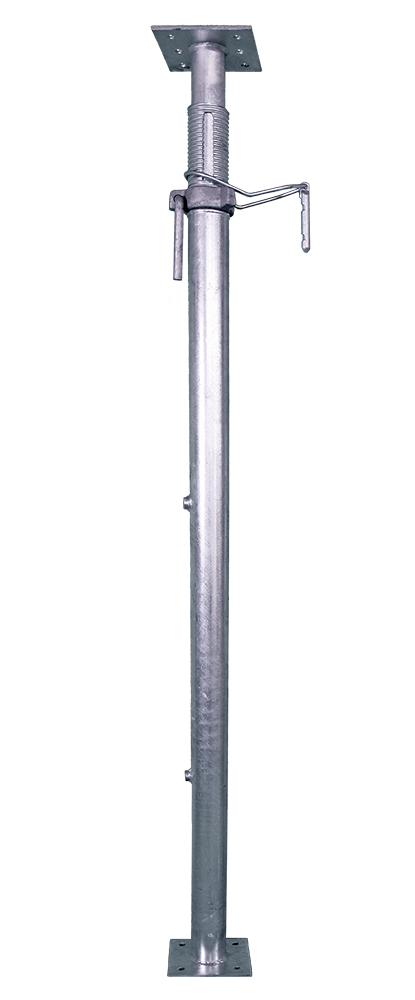

6’6″ to 11’6″ Galvanized 25k Post Shore
WT. 61.0 LBS
PSV-729G

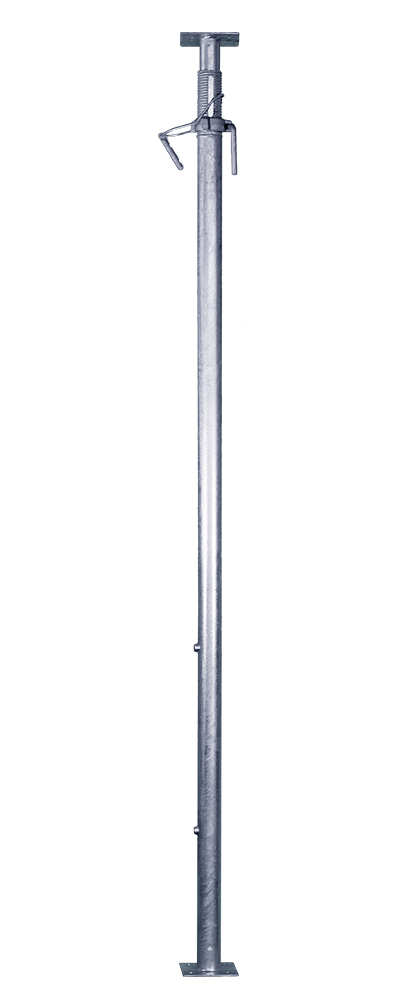

10′ to 18′ Galvanized 25k Post Shore
WT. 88.4 LBS
PSV-733G
Angle iron cross braces connect and stabilize paired shoring frames into a rigid, plumb tower assembly. The X-configuration resists lateral forces and prevents racking under heavy compressive loads, which is critical in temporary support applications where structural integrity cannot be compromised. Angle iron construction provides greater stiffness and resistance to bending compared to standard tube bracing, matching the higher load demands of shoring work. Pin holes at each end align with the shoring frame’s drop-lock receptacles for fast, tool-free installation. Black finish for easy visual distinction from scaffold-grade bracing on jobsites that run both systems simultaneously.
| Product Name | Weight | Part Number |
|---|---|---|
| 4' X 2' X 4' Angle Iron Cross Brace | 8.624 LBS | PSV-374 |

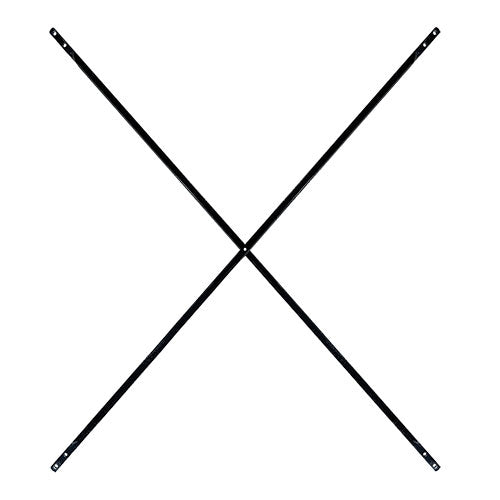

| 4' X 3' X 4' Angle Iron Cross Brace | 9.90 LBS | PSV-350 |
| 5' X 3' X 4' Angle Iron Cross Brace | 12.00 LBS | PSV-351 |
| 6' X 3' X 4' Angle Iron Cross Brace | 12.45 LBS | PSV-352 |
| 7' X 3' X 4' Angle Iron Cross Brace | 13.86 LBS | PSV-353 |
| 8' X 3' X 4' Angle Iron Cross Brace | 15.36 LBS | PSV-354 |
| 10' X 3' X 4' Angle Iron Cross Brace | 22.40 LBS | PSV-365 |
| Wingnut Lock for Hook on Angle Iron Braces | 0.066 LBS | PSV-371N |

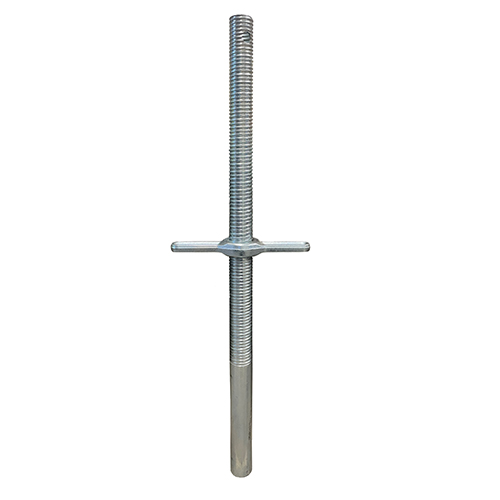

1-7/8″ X 36″ Shoring Screw Jack
WT. 10.20 LBS
PSV-133N
1-3/8″ X 1-7/8″ Shoring To W-Style Coupling Pin
WT. 1.17 LBS
PSV-105A
1-7/16″ X 1-7/8″ Shoring To S-Style Coupling Pin
WT. 1.17 LBS
PSV-105B

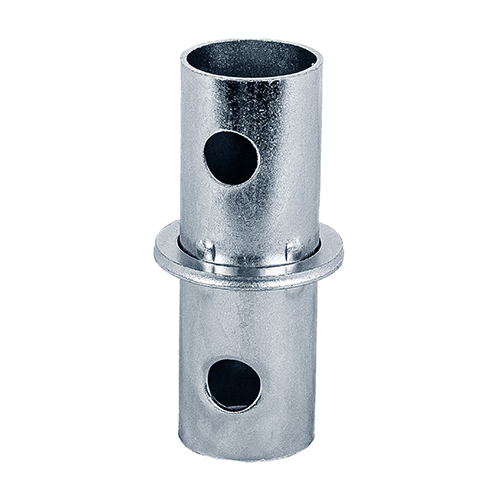

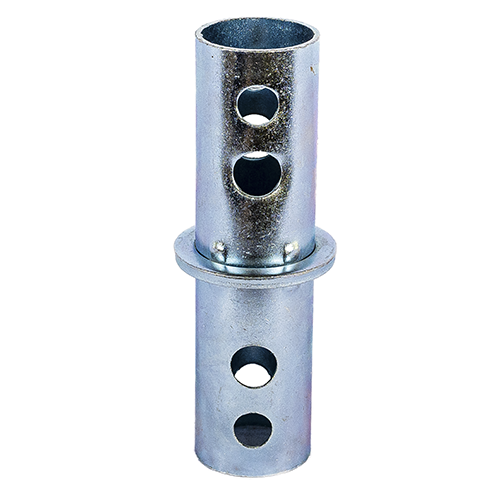

1-7/8″ H.L. Shoring Connector
WT. 0.96 LBS
PSV-102

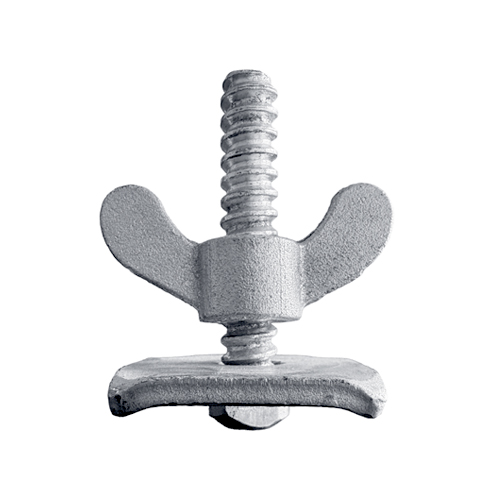

#1 A-Clamp Assembly (Steel)
WT. 0.50 LBS
PSV-908A

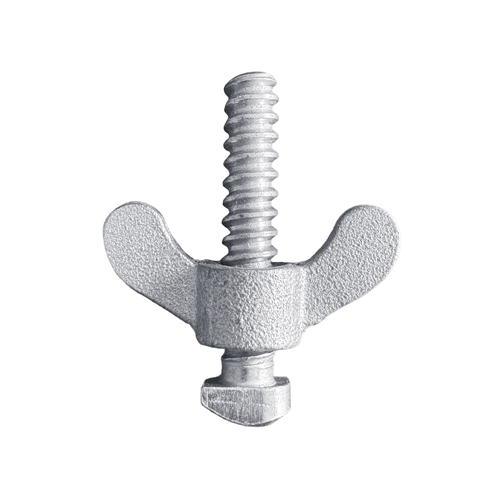

#1 A-Clamp Assembly (Steel) Bolt & Nut
WT. 0.29 LBS
PSV-908AN

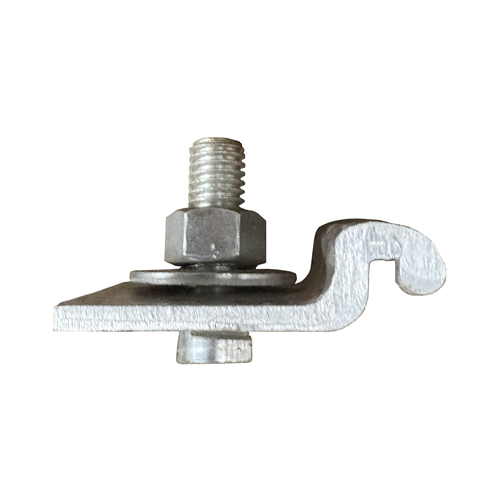

#2 A-Clamp Assembly (Aluminum) Bolt, Nut & Washer (Steel)
WT. 0.32 LBS
PSV-908B

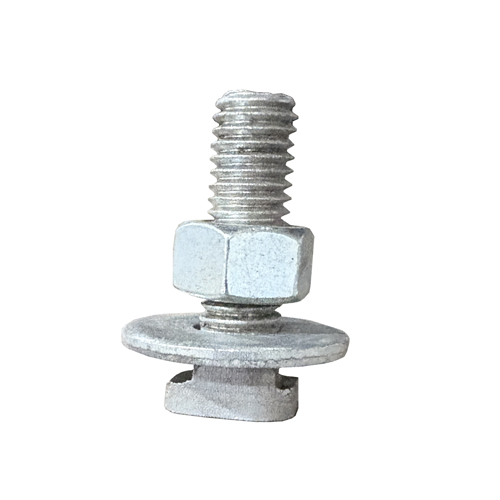

#2 A-Clamp Assembly Bolt, Nut & Washer (Steel)
WT. 0.18 LBS
PSV-908BNW
#2 C-Clamp W/3/4″ Opening
WT. 0.35 LBS
PSV-2611

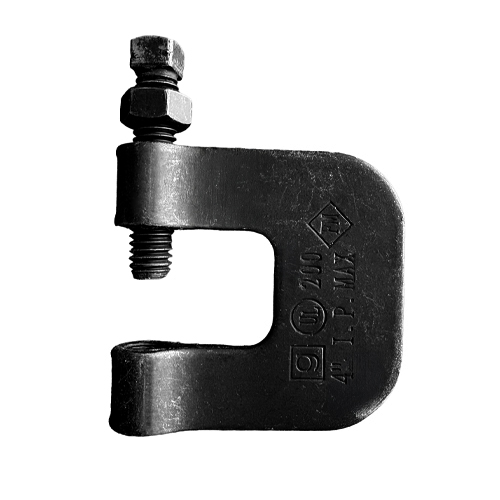

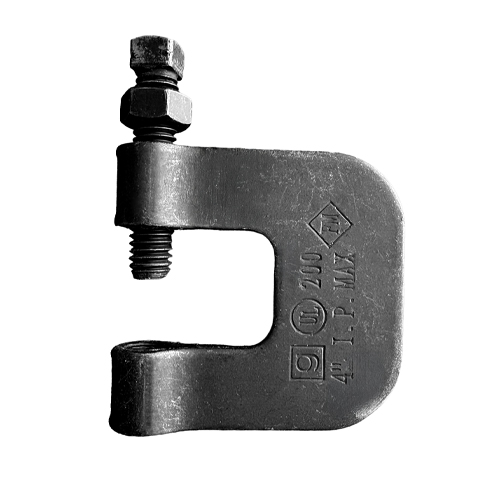

#2 C-Clamp W/1″ Opening
WT. 0.38 LBS
PSV-2611B
Hitch Pin
PSV-117B (4.5mm Large)
PSV-117M (3.8mm Medium)
PSV-117S (2.4mm Small

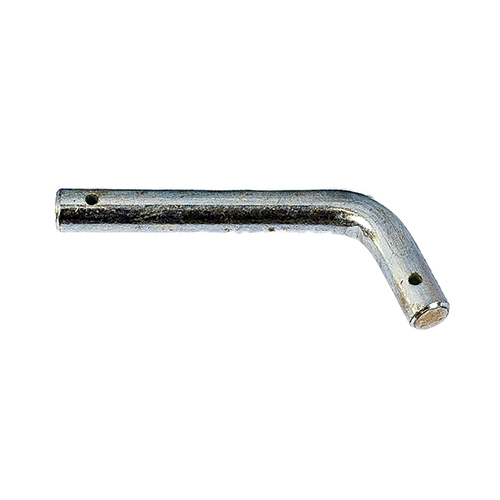

J-Pin
WT. 0.56 LBS
PSV-129
Nailing Plate for 10K Frame Leg
WT. 1.21 LBS
PSV-126
Reshore Clip
WT. 0.03 LBS
PSV-180

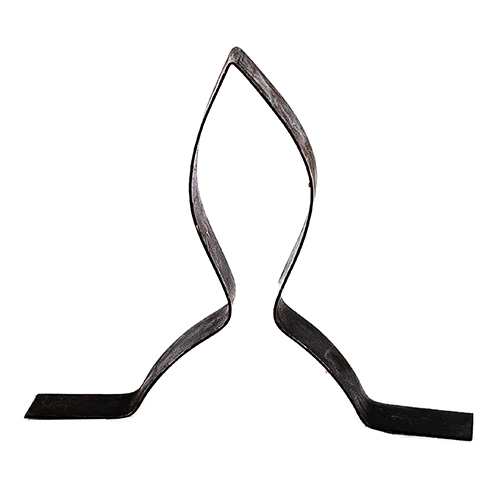

Post Shore Spring Clip
WT. 0.15 LBS
PSV-5103
7″ X 7″ Shoring Base Plate For Shoring Jack
WT. 6.05 LBS
PSV-143
7″ X 9″ Shoring Base Plate For Shoring Jack
WT. 7.57 LBS
PSV-142

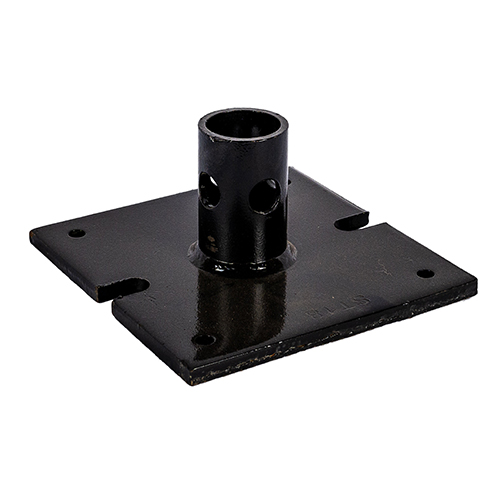

7″ X 7″ Shoring Base Plate For Frame Leg
WT. 6.20 LBS
PSV-149
5″ X 8″ Shoring J-Head For Shoring Jack
WT. 7.60 LBS
PSV-156
8″ X 8″ Shoring U-Head For Shoring Jack
WT. 12.60 LBS
PSV-144

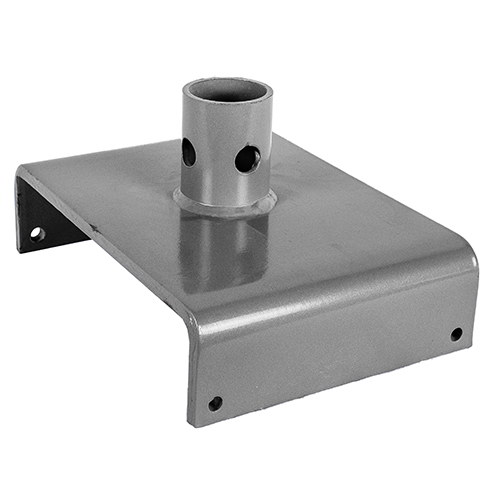

8″ X 10″ Shoring U-Head For Shoring Jack
WT. 14.0 LBS
PSV-157

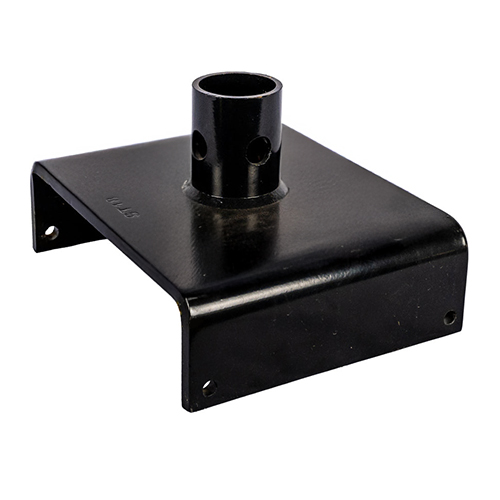

8″ X 9″ Shoring U-Head For Shoring Jack
WT. 13.60 LBS
PSV-147

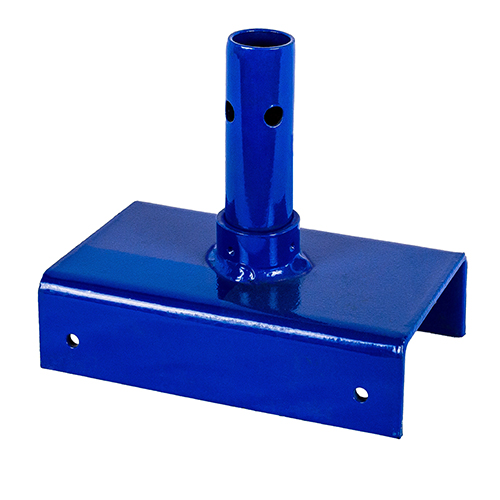

4″ X 8″ U-Head for Scaffold Frame
WT. 5.10 LBS
PSV-172

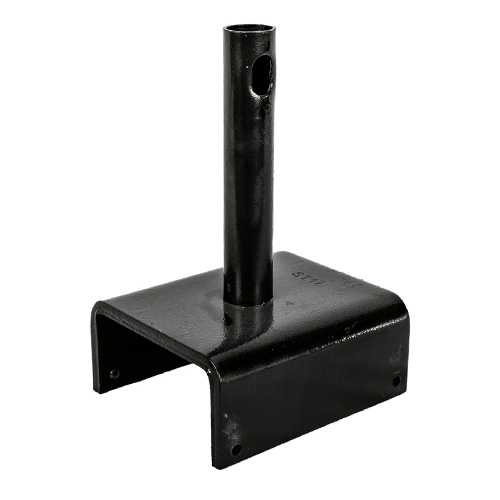

5″ X 7″ 10k Post Shore U-Head
WT. 8.60 LBS
PSV-158
25K Post Shore U-Head
WT. 10.01 LBS
PSV-5144
